Description & Specifications

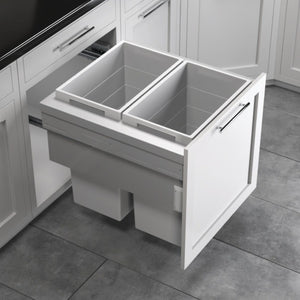

Hailo US Cargo FF 24 - Waste Bin Pull-Out, (Face Frame)
With synchronized soft close progressive slides
Cycle test: 100,000
| Specification | Value |
|---|---|
| For cabinet width | 610 mm Internal: 22 1/2" – 23 1/16" |
| For internal cabinet width | 572 – 586 mm |
| For internal cabinet width (min.) | 572.00 mm |
| For internal cabinet width (max.) | 586.00 mm |
| Installation width | 572 – 586 mm Min. 24" |
| Capacity | 2 × 44.4 quarts |
| Bins (litres) | 42 | 42 |
| Number of bins | 2.00 |
| Color/finish | Lid & Frame: Silver powder-coated Bins: Light gray |
| For cabinet depth | Required: 575 mm (22 5/8") |
| Material/finish | Lid & Frame: Steel Bins: Plastic |
| Area of application | For face frame cabinets |
| Load bearing capacity | 50.00 kg / 110 lbs |
| Installation | Installation behind fronts, for screw fixing to side panel and cabinet door |

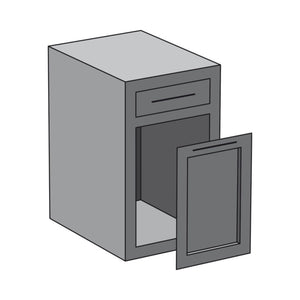

| Installation reference | D × H: 569 × 521 mm (22" × 20 1/2"), Fits below a drawer |
| Mounting location | Installation behind fronts, for screw fixing to side panel and cabinet door |
Supplied with
Lid
