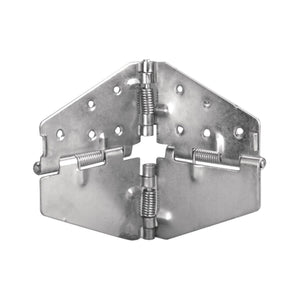

Häfele - Table Leaf Flap Hinge, Steel
The Häfele Table Leaf Flap Hinge in steel is designed for light-duty table extensions where leaves fold under the top when not in use. The hinge operates under constant spring tension, helping to hold leaves securely in place while allowing them to rotate up into position.
Note: Hinge is under constant spring tension. Keep fingers clear when operating.
| Specification | Value |
|---|---|
| Product Category | Table Leaf Flap Hinge |
| Area of application | Table extension fittings |
| Color/finish | Yellow chromate |
| Material | Steel |

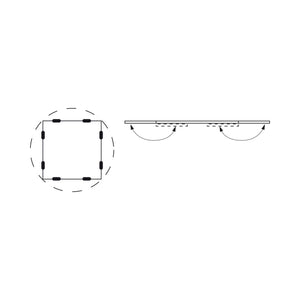

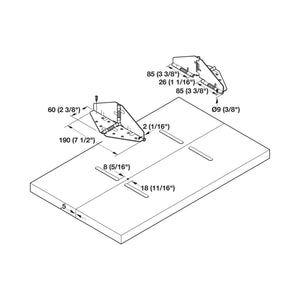

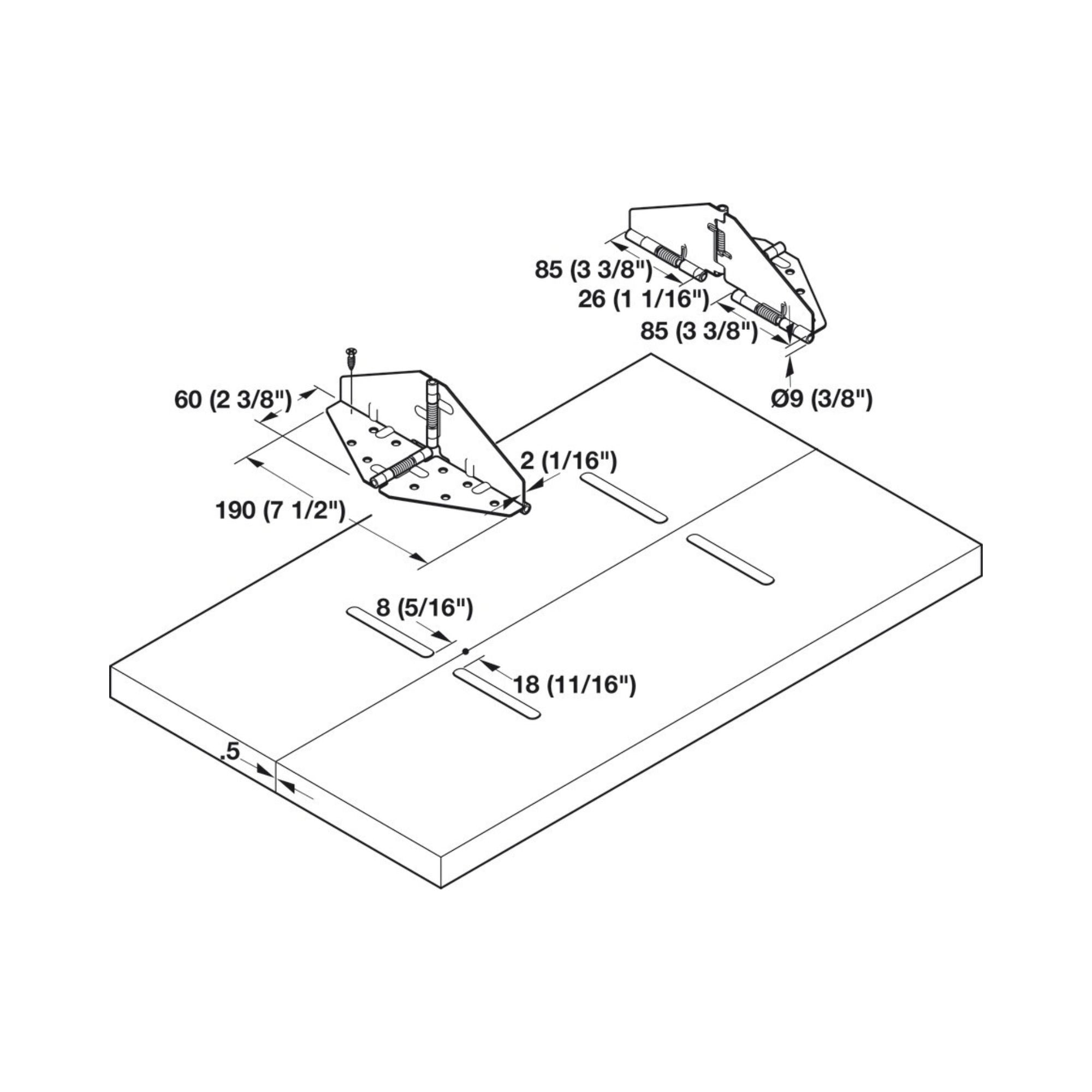

| Installation reference | Table leaves are held under the table; rotate up to 180° and hinge locks leaf in horizontal position. Designed for relatively light-duty use; flap should not exceed 8" in depth and must be tested in application. No weight rating specified by Häfele. |
