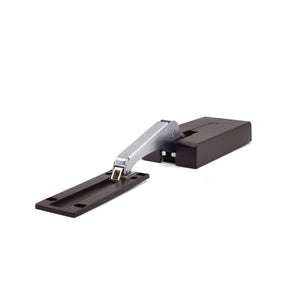

Häfele - Sugatsune - LADH Countertop Lift, Heavy Duty Lift-Assist Damper
The Häfele Sugatsune LADH Countertop Lift is a heavy-duty lift-assist damper designed to make lifting and lowering countertop doors safer and smoother. Ideal for restaurants, bars and reception desks, it holds the door open at 95° and adds a controlled soft-close motion to prevent slamming.
- Lift-assist feature helps raise heavy countertop doors with less effort
- Holds the door securely open at 95° for safe access
- Integrated soft-close function prevents noisy slamming
- Surface-mounted design for easy installation and retrofitting
- Includes stainless steel piano hinge that can be cut to length
- Suitable for heavy-duty commercial countertop applications
| Specification | Value |
|---|---|
| Product Category | Sugatsune - LADH Countertop Lift |
| Material | Steel and zinc |
| Door hold-open angle | 95° |
| Panel thickness | 30–50 mm |
| Hinge length | 600 mm (can be cut to desired length) |
| Torque range | 309–442 lbs |
| Installation | Surface mounted; can be retrofitted |
| Area of application | Countertops in restaurants, bars, reception desks and similar |
| Use | Can be used in pairs (consult Sugatsune technical support) |
Supplied with
- Stainless steel piano hinge
- Mounting instructions
