Häfele - Pull-Out Table Fitting, Top Flex
The Häfele Top Flex Pull-Out Table Fitting offers a smart, space-saving solution for modern kitchens. Extend your prep area when needed and stow it away effortlessly, thanks to its smooth sliding system and automatic drop-down front panel.
- Ideal for compact kitchens or multi-functional living spaces
- Extension fitting supports surfaces up to 900 mm (35 1/2") wide

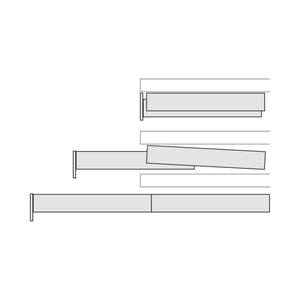

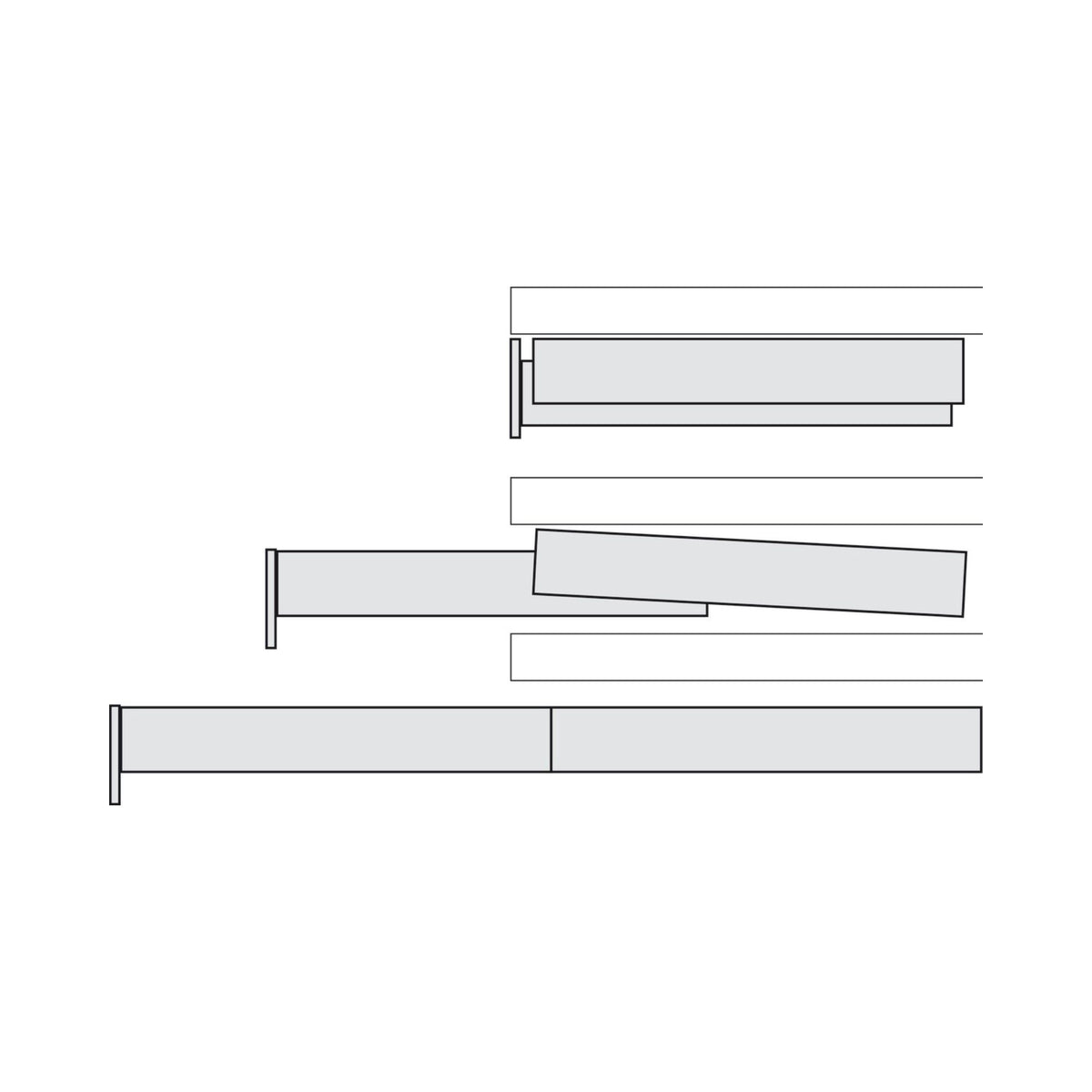

- Front panel drops automatically to create a flush tabletop
- Durable steel construction with zinc plated and powder-coated finish
- Easy to install and designed for long-lasting performance
| Specification | Value |
|---|---|

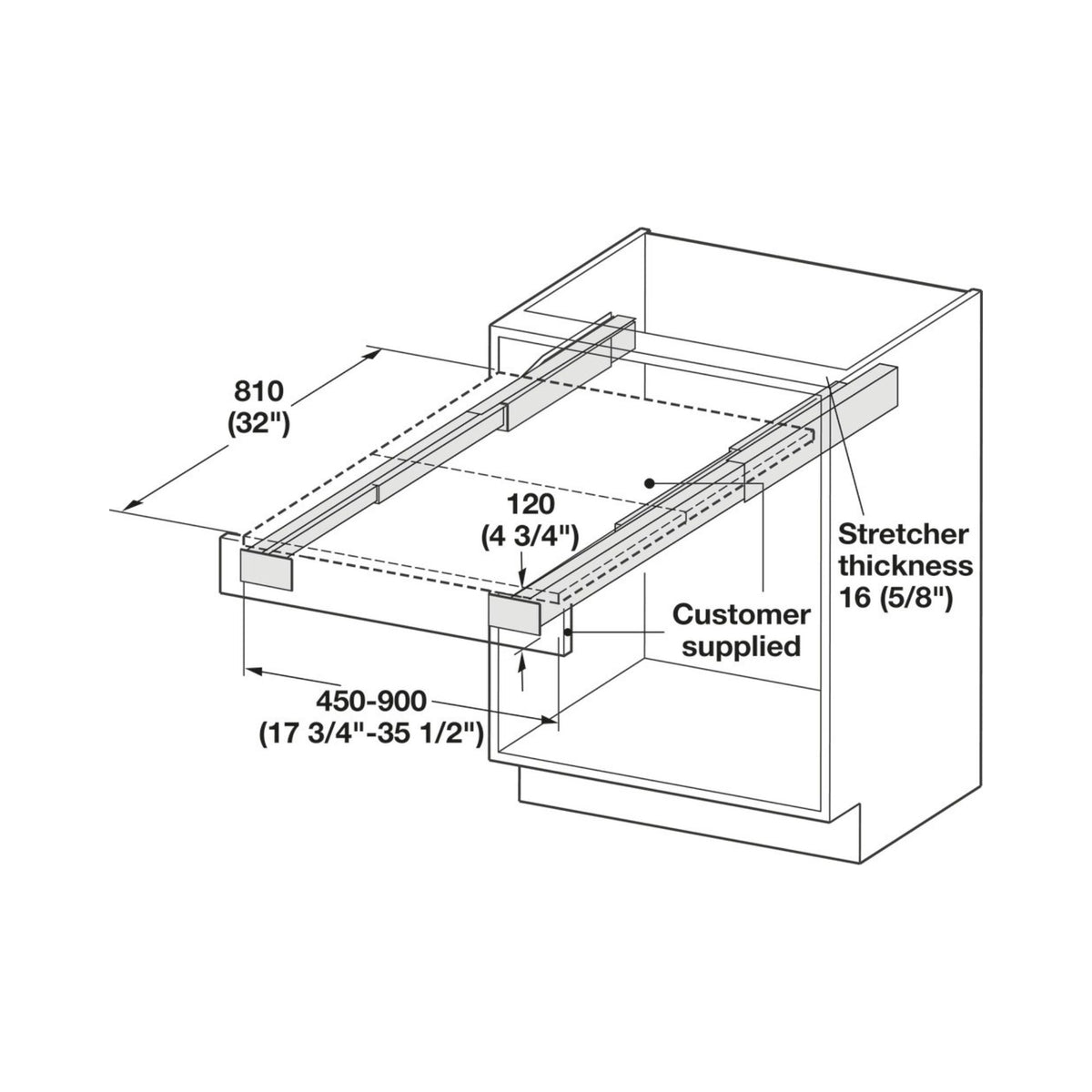

| Extension length | 810.00 mm / 32" |
| For internal cabinet height | 4 3/4" |
| For cabinet width | 450 – 900 mm / 17 3/4" – 35 1/2" |
| Color/finish | White aluminum, RAL 9006; zinc plated or powder coated; galvanized |
| Version | Front panel drops automatically until top is flush with table |
| Material | Steel, plated |
| Load bearing capacity | 30.00 kg / 66 lbs |
| Installation reference | Recommended table top thickness: 5/8" |

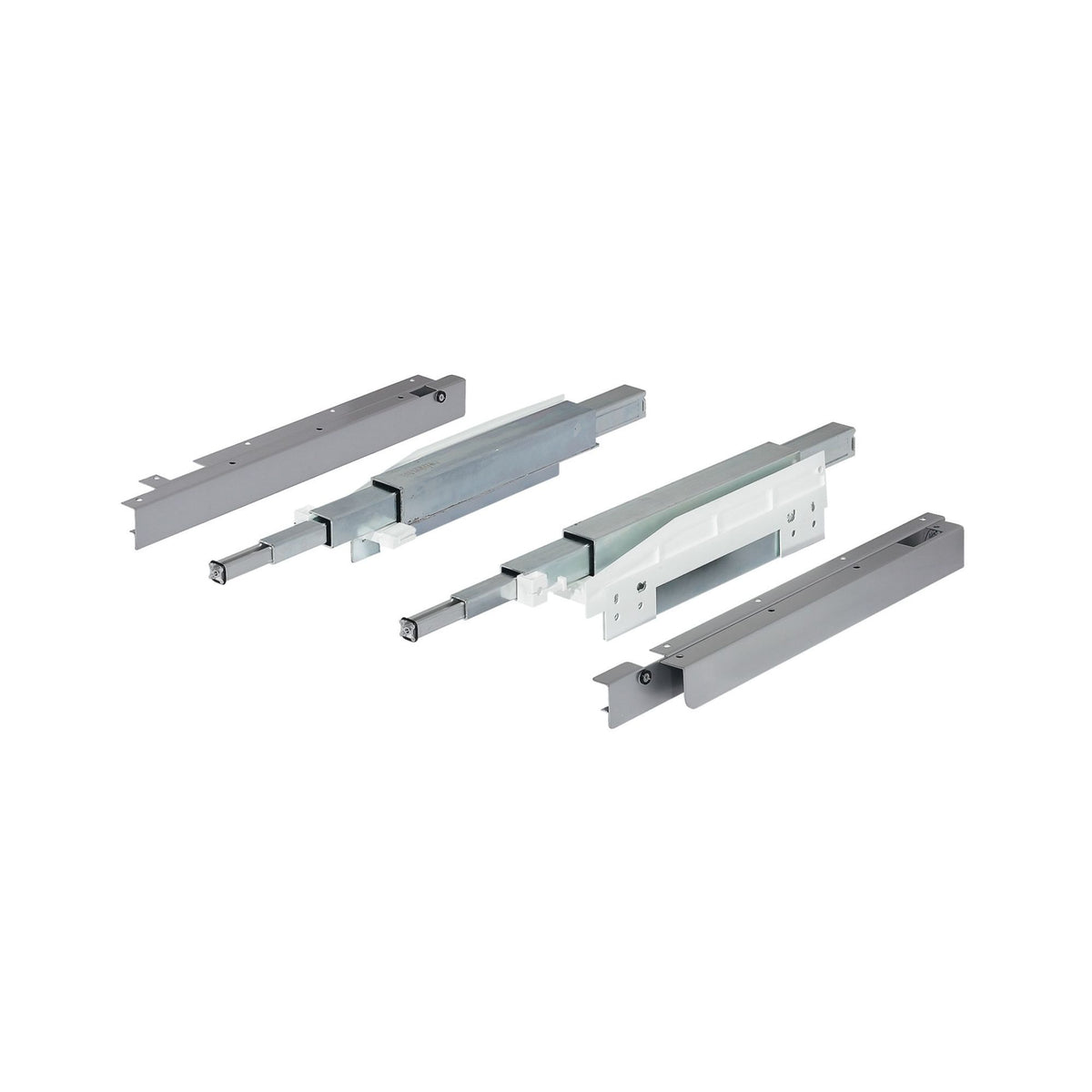

Supplied with
- Extension fittings
