Häfele - Panel Holder, Matrix Box P

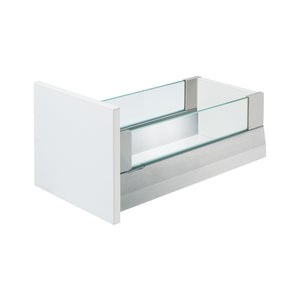

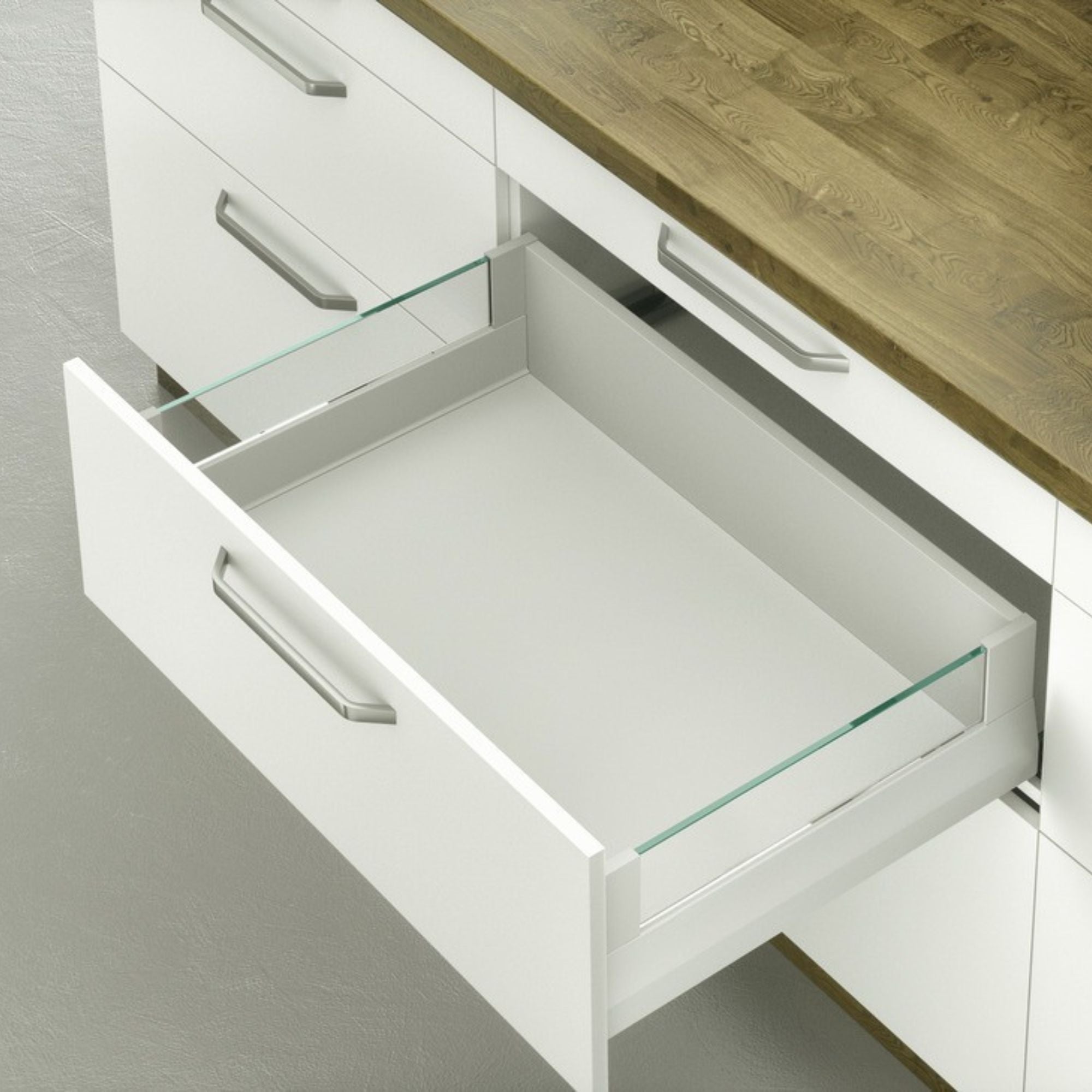

The Häfele Panel Holder for Matrix Box P is designed to securely support individual panels made of glass, wood, or acrylic up to 8 mm thick. It features an adjustable front tilting angle and provides additional stability for tall pull-outs with door front fixing, ensuring smooth operation and a refined finish.
- For individual panels up to 8 mm thick (glass, wood, or acrylic)

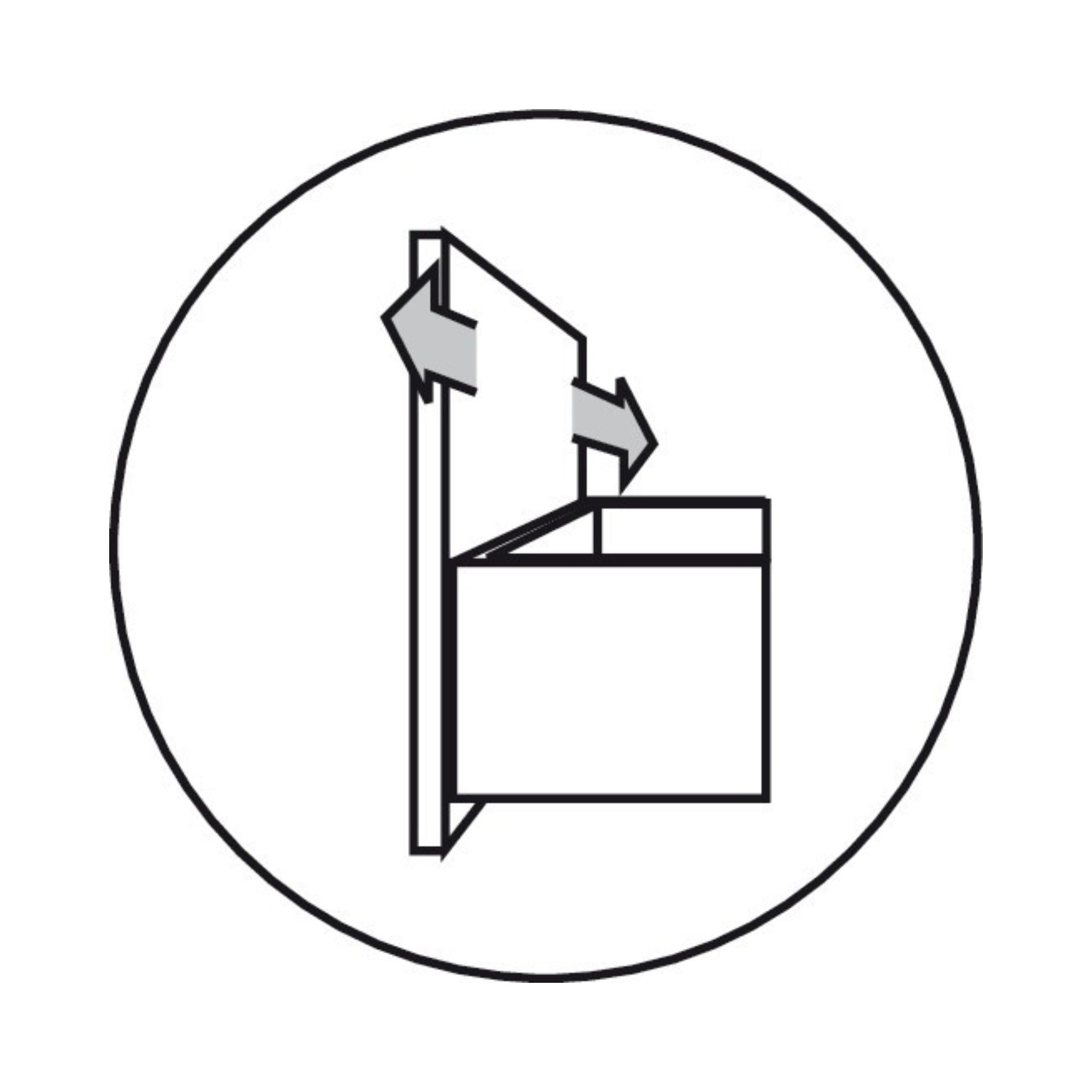

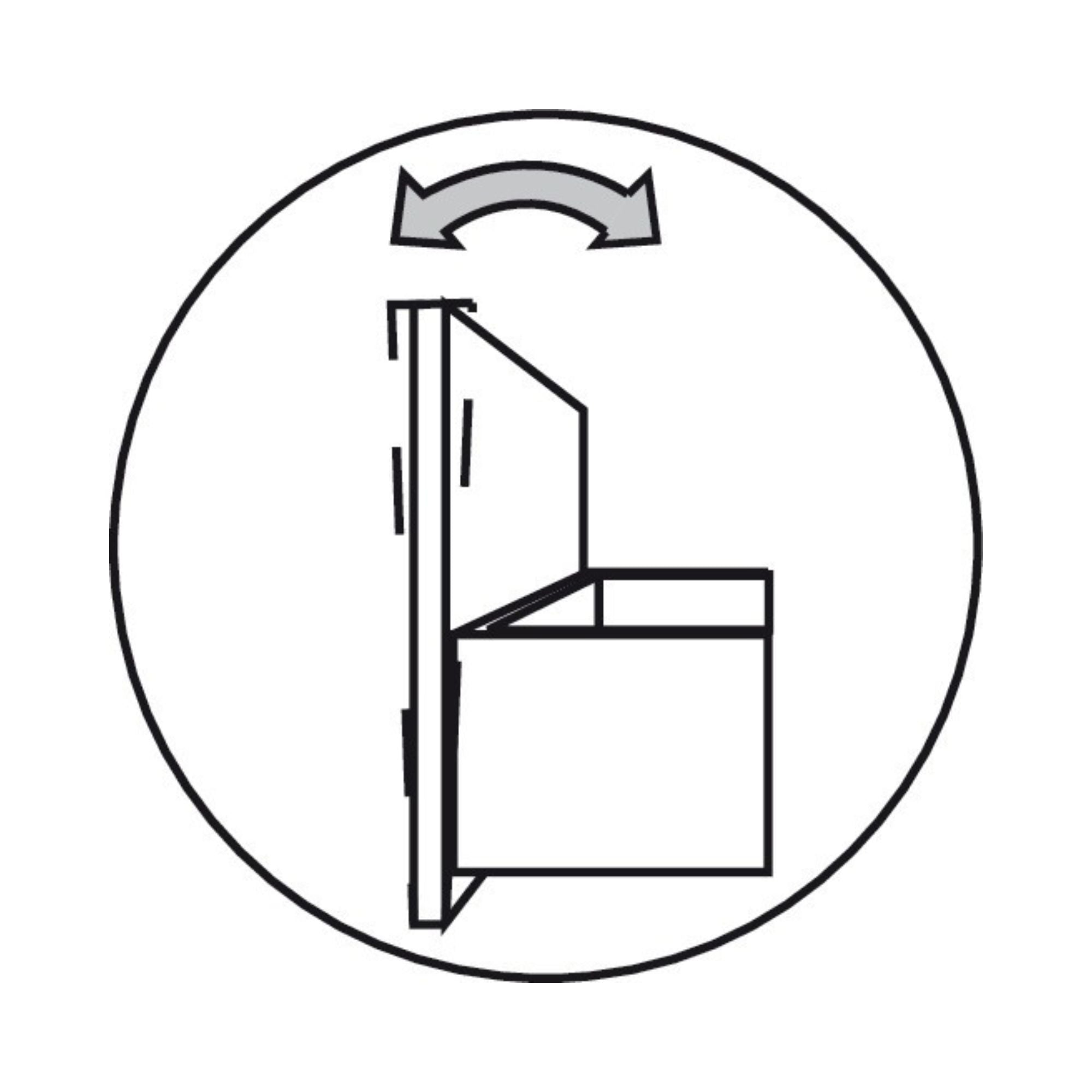

- Front panel tilting angle adjustment of ±2 mm
- Provides added stability for tall pull-outs with door front fixing
- Constructed with durable aluminum and plastic components
| Specification | Value |
|---|---|
| Height (inch) | 3 3/8" |
| Thickness (inch) | 5/16" |
| Material thickness | 5/16" |
| Area of application | For pull-out with door front fixing |
| Material | Aluminum, Plastic |
| Order reference | Matrix Box P Plus drawer set, drawer side height 92 mm and glass panel not supplied; please order separately |

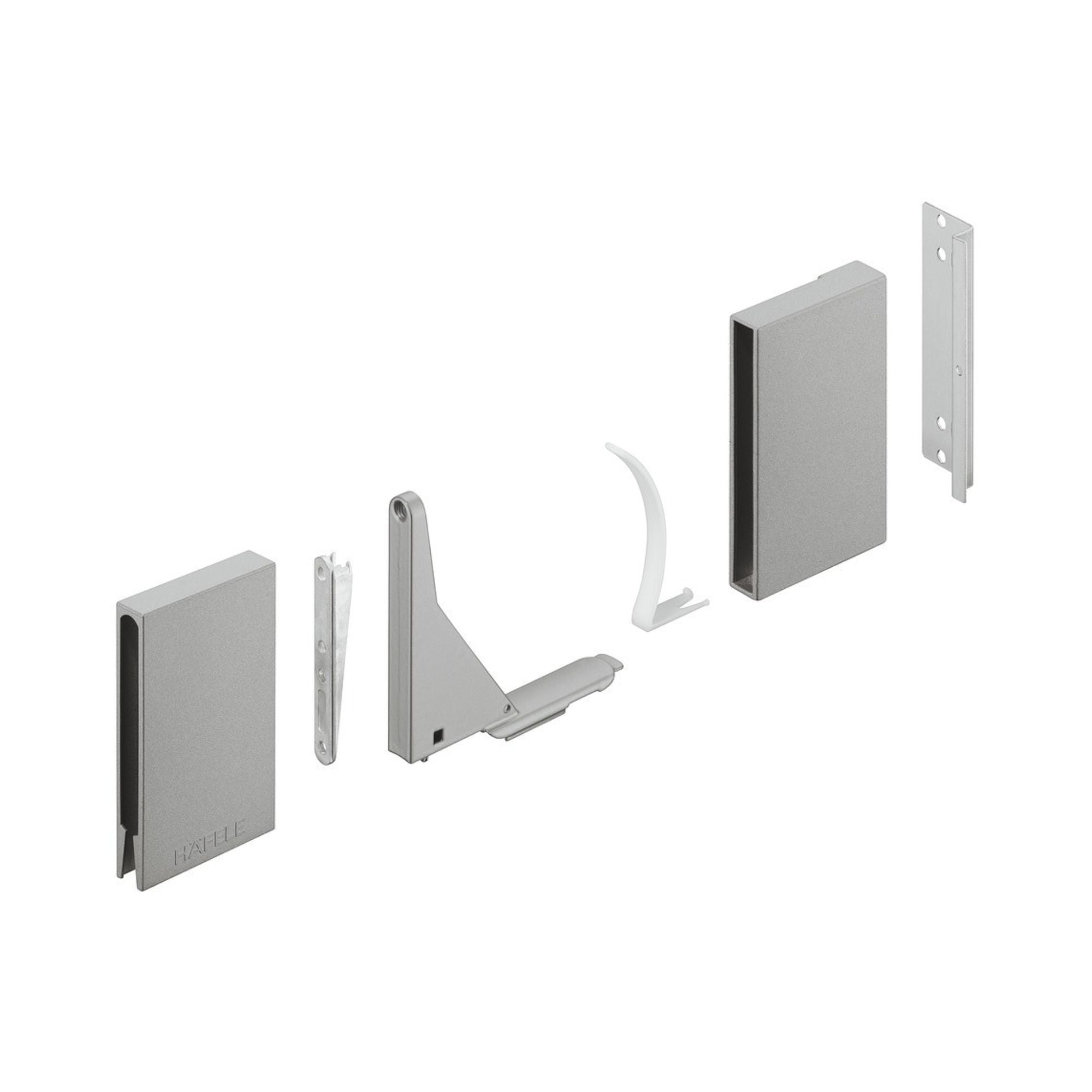

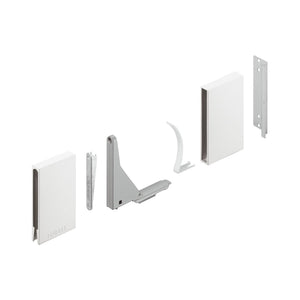

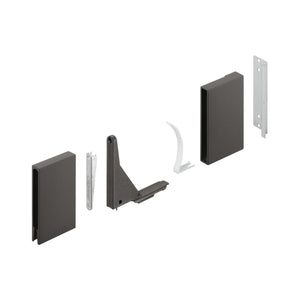

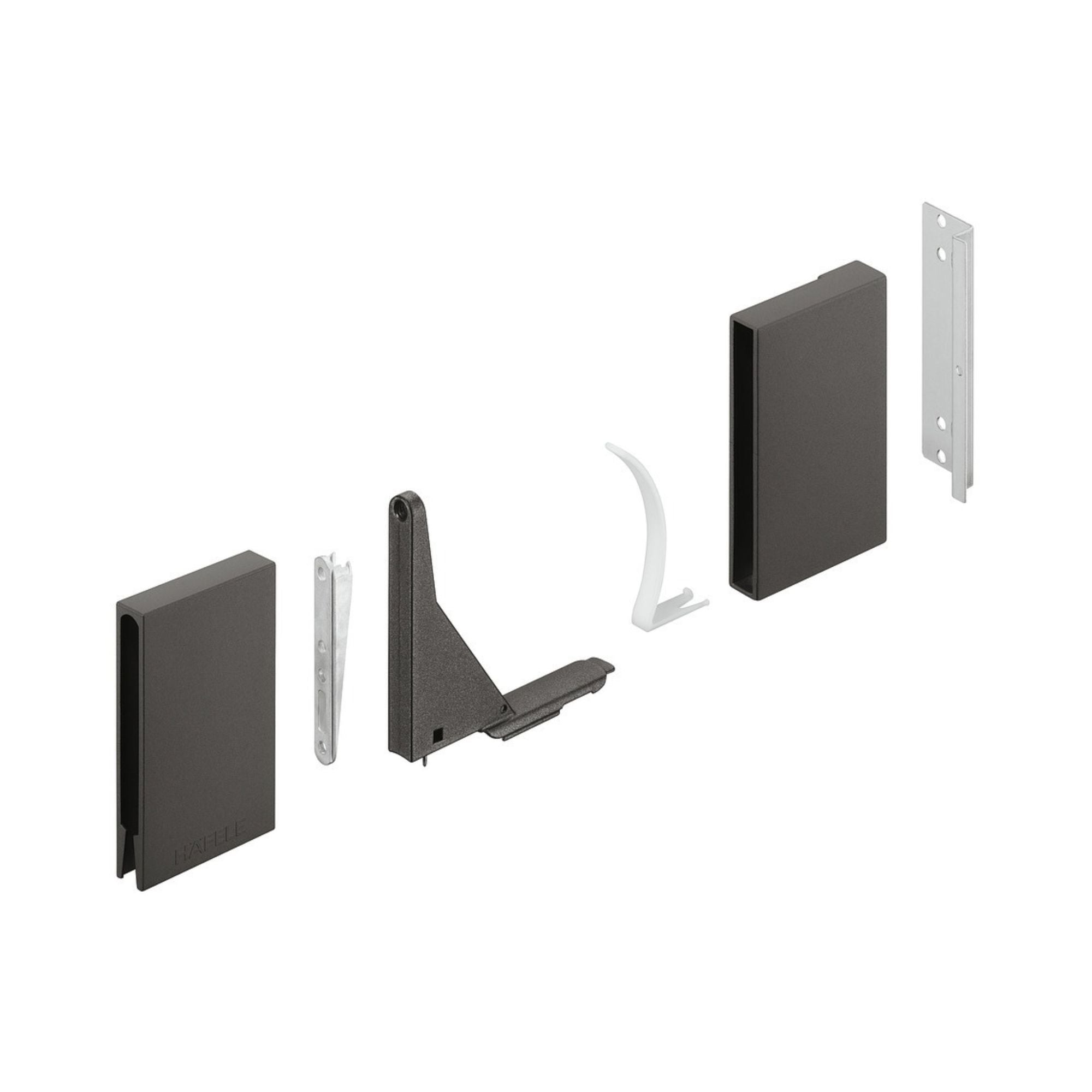

Supplied with

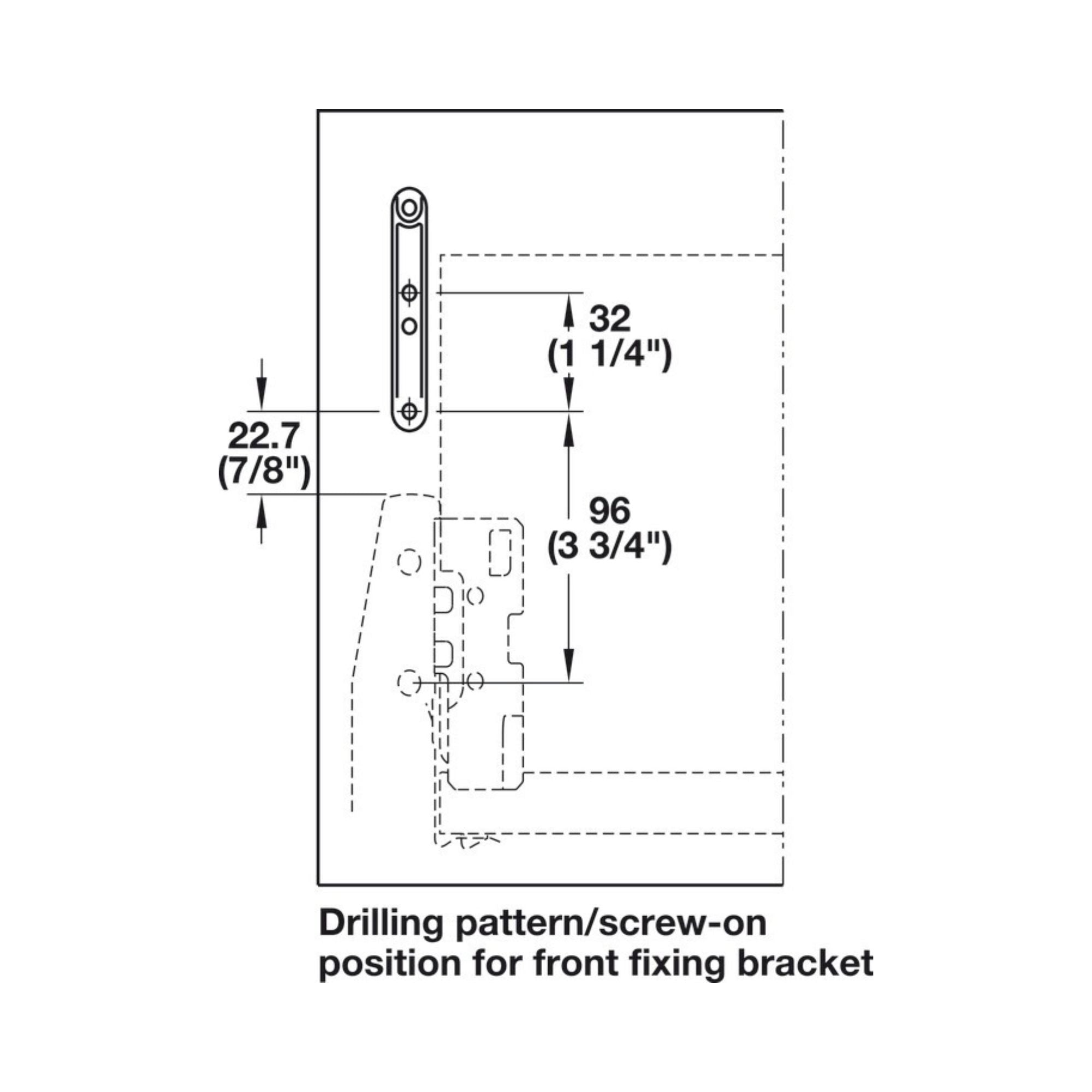

- 2 front brackets
- 2 panel holders with tension spring
- Adjustable screw for front bracket and insert for drawer sides
- 2 cover caps, 2 panel holders (rear)

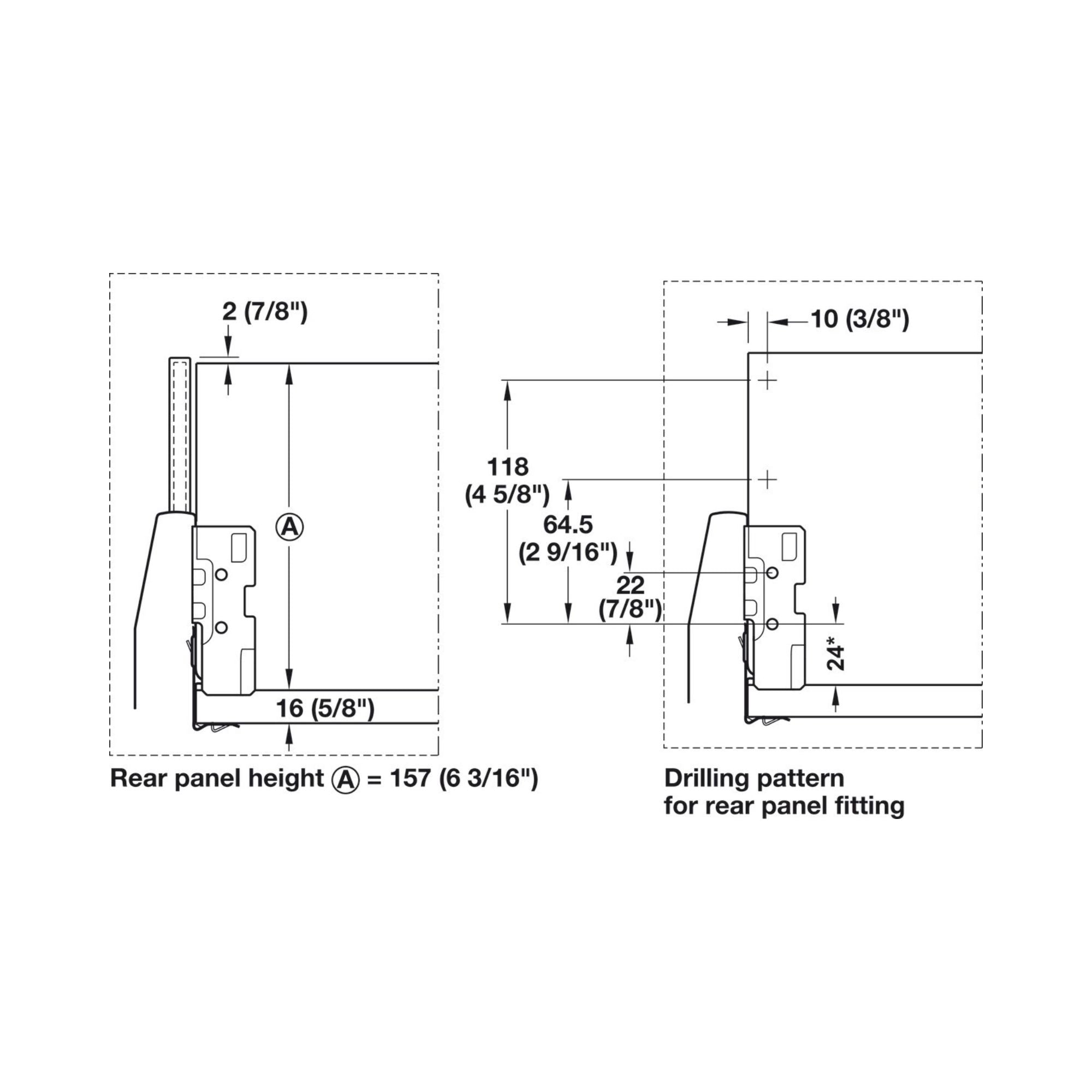

- 2 rear panel fittings
