Description & Specifications

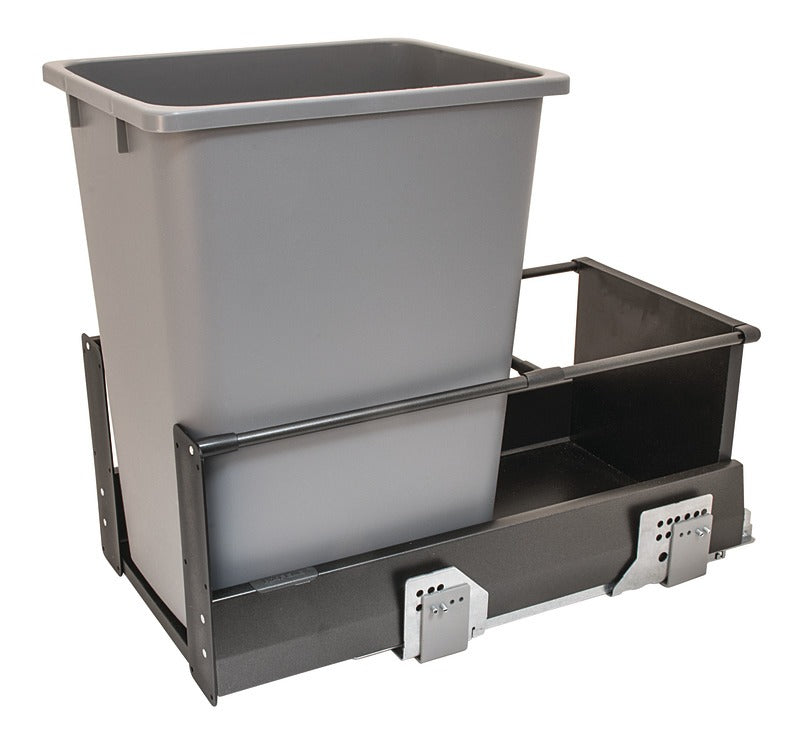

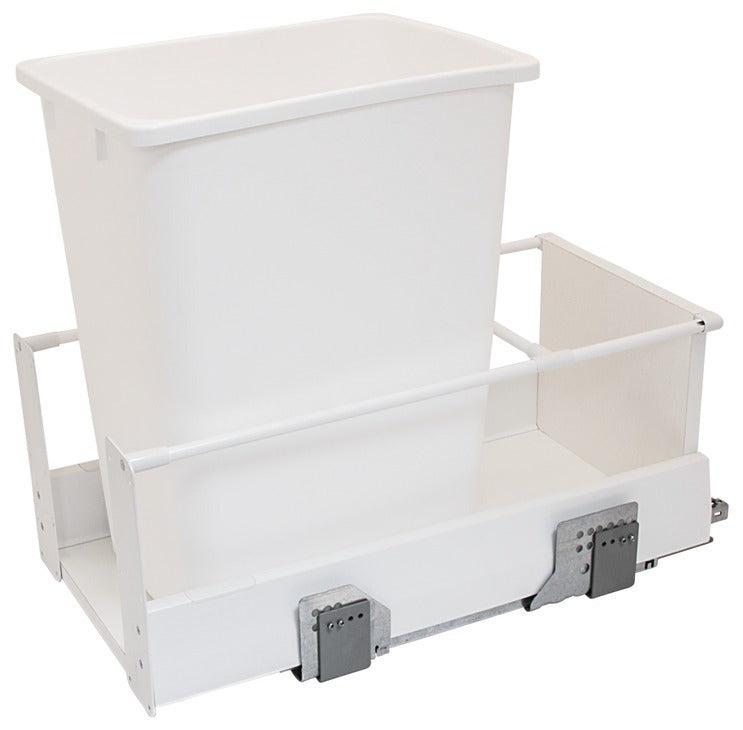

Häfele Matrix - Waste Bin Pull-Out, Single (Capacity 52 qt)
Double wall steel frame system provides heavy duty structure and a stylish design
Unit comes pre-assembled with bins included
Melamine Bottom and Back with Edgebanding
-
Add your door thickness for inset applications
| Specification | Value |
|---|---|
| Number of bins | 1.00 |

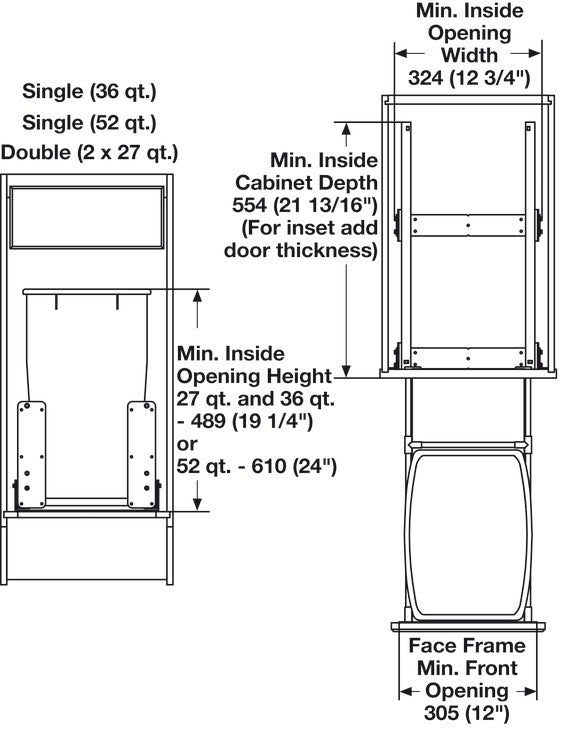

| For internal cabinet depth (min.) | 19 11/16" |
| Internal cabinet width | 12 - 13 1/2" |
| Material/finish | Frame: Steel; Bottom & back: Particle board; Bin: Plastic |
| Area of application | Bottom mount unit designed for Face Frame or Frameless cabinets; Residential applications only |
| Version | Soft & silent Minimum Opening Width:
|
| Type of pull out | Full extension progressive action runners |
| Load bearing capacity | 110 lbs |
| Installation | Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge) |
Supplied with
Mounting screws
Mounting instructions
Description & Specifications
Häfele Matrix - Waste Bin Pull-Out, Single (Capacity 52 qt)
Double wall steel frame system provides heavy duty structure and a stylish design
Unit comes pre-assembled with bins included
Melamine Bottom and Back with Edgebanding
-
Add your door thickness for inset applications
| Specification | Value |
|---|---|
| Number of bins | 1.00 |
| For internal cabinet depth (min.) | 19 11/16" |
| Internal cabinet width | 12 - 13 1/2" |
| Material/finish | Frame: Steel; Bottom & back: Particle board; Bin: Plastic |
| Area of application | Bottom mount unit designed for Face Frame or Frameless cabinets; Residential applications only |
| Version | Soft & silent Minimum Opening Width:
|
| Type of pull out | Full extension progressive action runners |
| Load bearing capacity | 110 lbs |
| Installation | Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge) |
Supplied with
Mounting screws
Mounting instructions
