Häfele Matrix - Waste Bin Pull-Out, Single
Double wall steel frame system provides heavy duty structure and a stylish design
Unit comes pre-assembled with bins included
Melamine Bottom and Back with Edgebanding
-
Soft & silent

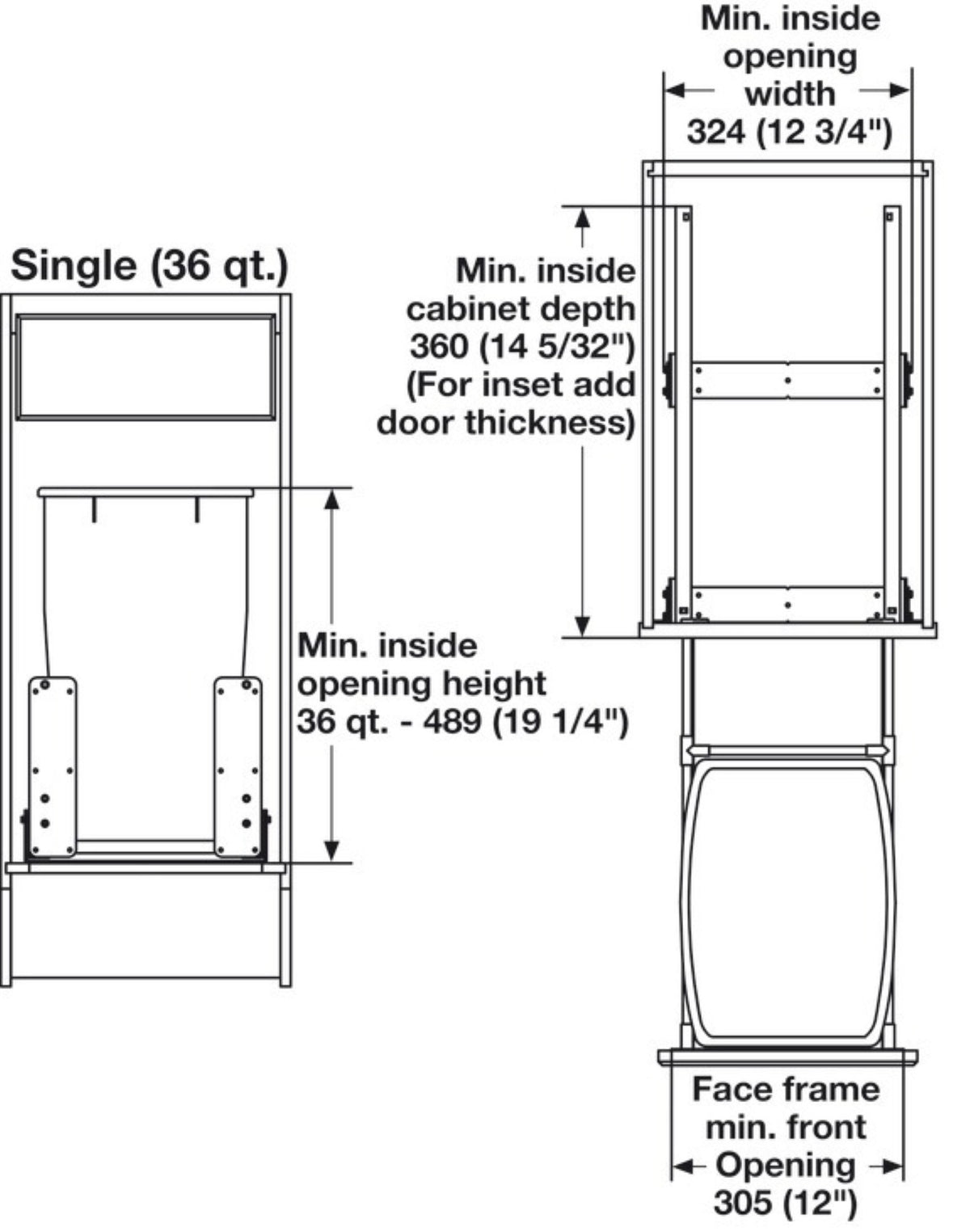

Minimum height of opening: 489 mm (19 1/4") for 36 qt and 610 mm (24") for 52 qt
Minimum Opening Width:
• 305 mm (12") Face Frame
• 324 mm (12 3/4") Frameless
• 343 mm (13 1/2") with door brackets reversed for Full Overlay 5 piece doors
-
Add your door thickness for inset applications
| Specification | Value |
|---|---|
| For internal cabinet height | 489.00 mm |
| For internal cabinet height | 19 1/4" |
| For internal cabinet depth | ≥ 360 mm |
| For internal cabinet depth (min.) | 14 3/16" |
| Capacity | 36 qts |
| Material/finish | Frame: Steel; Bottom & back: Melamine; Bin: Plastic |
| Area of application | Bottom mount unit designed for Face Frame or Frameless cabinets |
| Type of pull out | Full extension progressive runner |
| Load bearing capacity | 50.00 kg |
| Mounting | Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge) |
| Adjustment facility | 6-way |
Supplied with
Mounting screws
Mounting instructions
