Description & Specifications

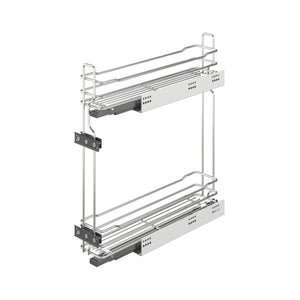

Häfele - Base Pull-Out, for installation behind fronts
-
3D adjustment via front connection
| Specification | Value |
|---|---|
| For cabinet width | 150 mm / 5 7/8" |
| For internal cabinet width | ≥112 mm |
| For internal cabinet depth | ≥515 mm / 20 1/2" |
| For internal cabinet height | 515–600 mm (≈ 20 1/4" – 23 5/8") |
| Color/finish | Chrome plated Pull-out: Powder-coated, anthracite Baskets: Chrome-plated Runners: Zinc-plated |
| Mounting | Right-mounted |
| Version | Pull out for door front fixing |
| Dim. A | 13.00 mm (≈ 1/2") |
| Width | 95.00 mm / 3 3/4" |
| Depth | 485.00 mm / 20 5/16" |
| Type of pull out | Full extension |
| Load bearing capacity | 12.00 kg / 26 lbs |
| Installation depth | 515.00 mm / 20 1/2" |
| Material | Steel |
| Installation | For screw fixing to side panel and front panel |
| Soft closing mechanism | Yes |
| Features | Wire shelf |
Supplied with
Frame
Baskets
Top/bottom runners
Front brackets
Mounting instructions
Description & Specifications
Häfele - Base Pull-Out, for installation behind fronts
-
3D adjustment via front connection
| Specification | Value |
|---|---|
| For cabinet width | 150 mm / 5 7/8" |
| For internal cabinet width | ≥112 mm |
| For internal cabinet depth | ≥515 mm / 20 1/2" |
| For internal cabinet height | 515–600 mm (≈ 20 1/4" – 23 5/8") |
| Color/finish | Chrome plated Pull-out: Powder-coated, anthracite Baskets: Chrome-plated Runners: Zinc-plated |
| Mounting | Right-mounted |
| Version | Pull out for door front fixing |
| Dim. A | 13.00 mm (≈ 1/2") |
| Width | 95.00 mm / 3 3/4" |
| Depth | 485.00 mm / 20 5/16" |
| Type of pull out | Full extension |
| Load bearing capacity | 12.00 kg / 26 lbs |
| Installation depth | 515.00 mm / 20 1/2" |
| Material | Steel |
| Installation | For screw fixing to side panel and front panel |
| Soft closing mechanism | Yes |
| Features | Wire shelf |
Supplied with
Frame
Baskets
Top/bottom runners
Front brackets
Mounting instructions
Häfele
by
Plaiwoo
Häfele - Base Pull-Out, for installation behind fronts
SKU:549.37.200
