Description & Specifications

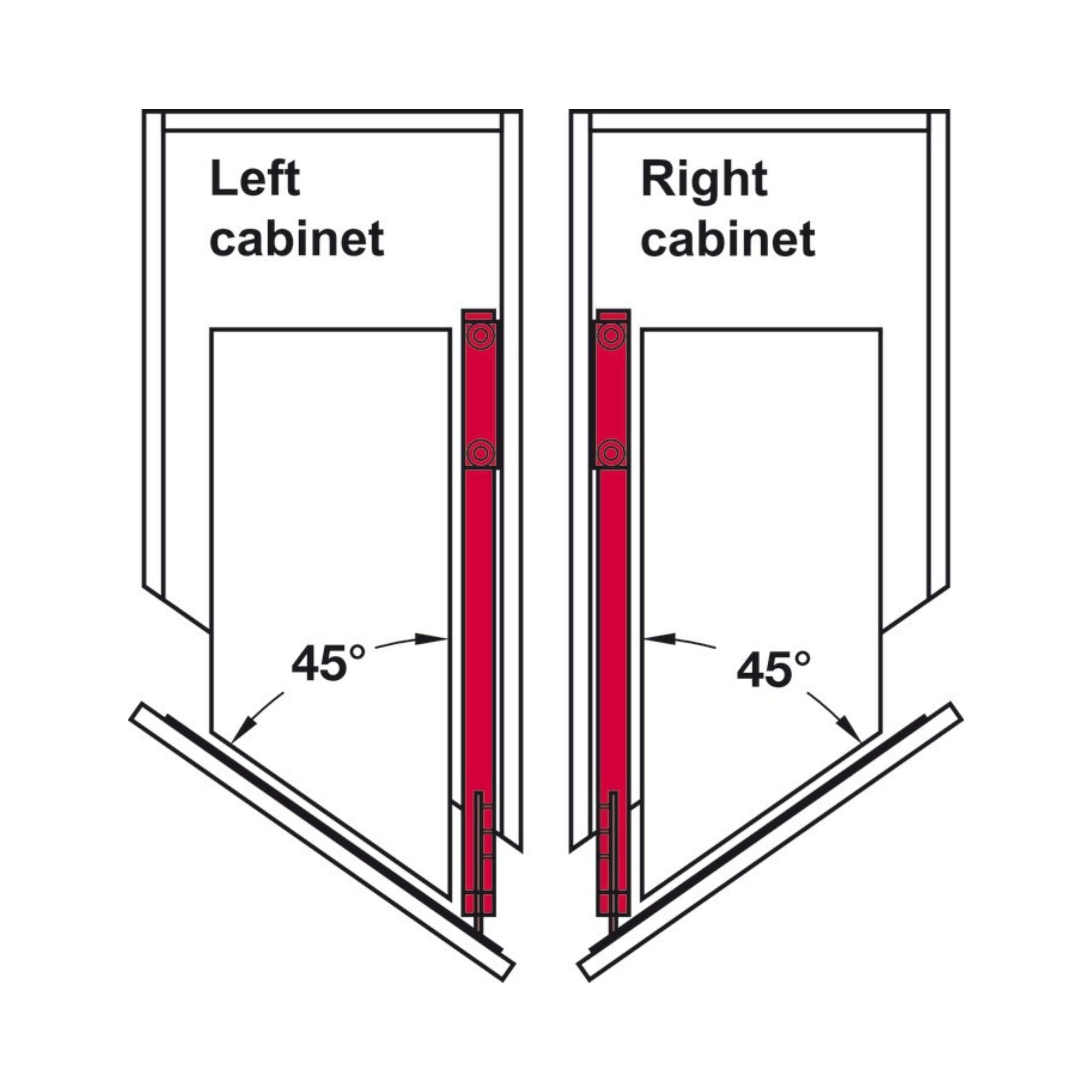

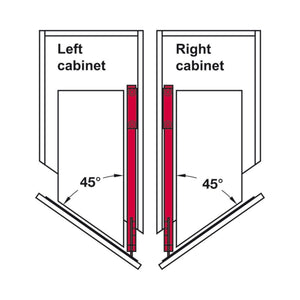

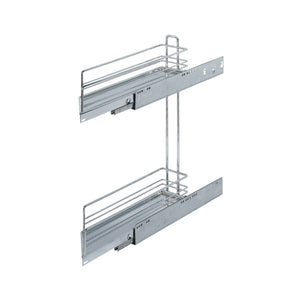

Häfele - Base Pull-Out, 2-Tier, 45°
Soft & Silent Feature slows the pull-out just before final closure, creating automatic and silent closing
Slides are concealed under the metal trays
Make the most of a narrow space
Shelves accommodate items with Ø90 mm (3 1/2")
| Specification | Value |
|---|---|

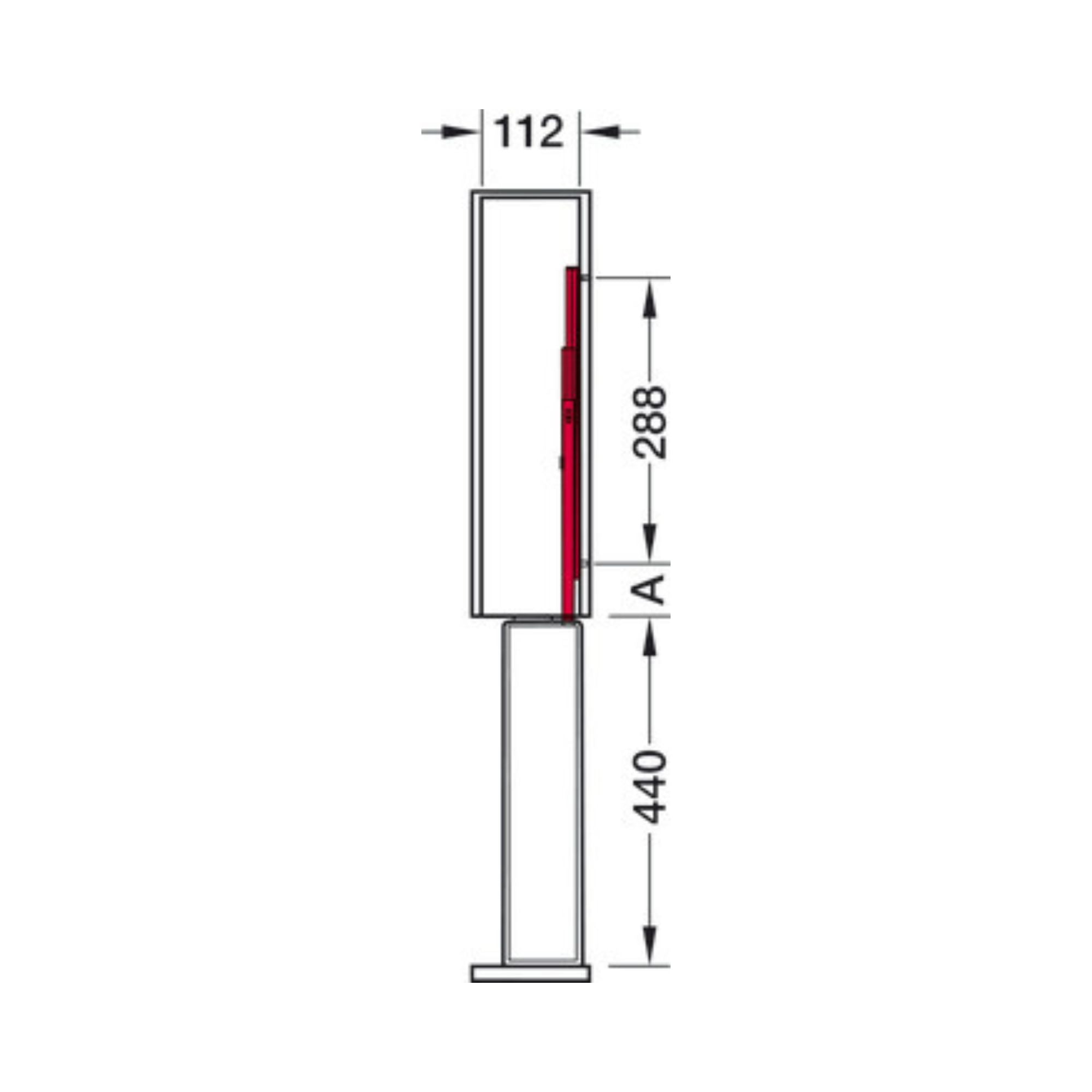

| For internal cabinet width | ≥112 mm / Min. 4 1/2" |
| For internal cabinet height | Min. 22 1/4" |

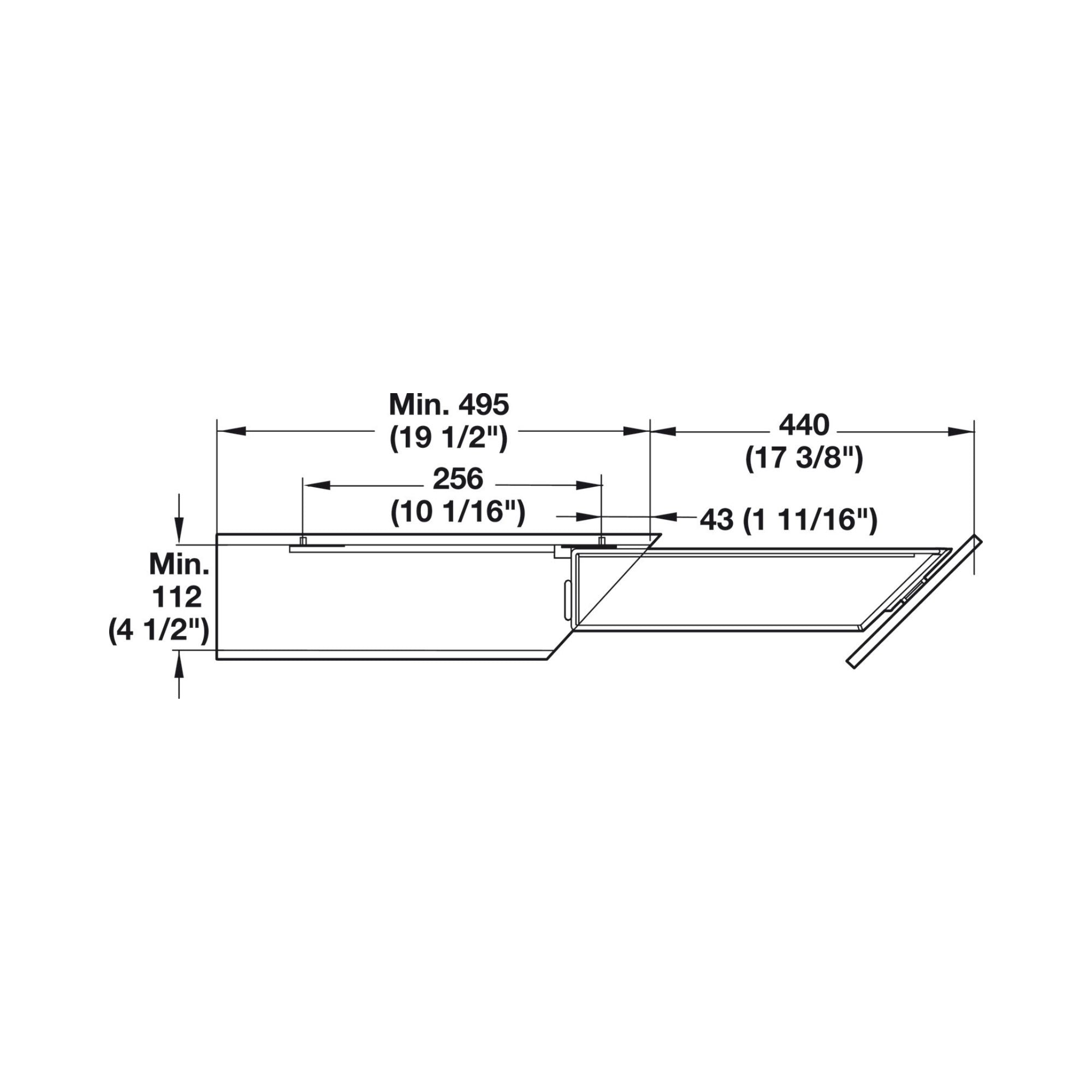

| For internal cabinet depth | Min. 19 1/2" (≈ 495 mm) |
| Color/finish | Not specified |
| Mounting | Right-mounted |

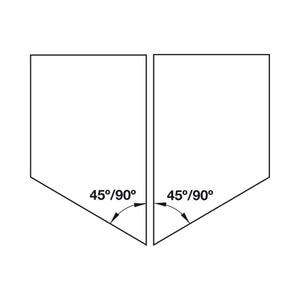

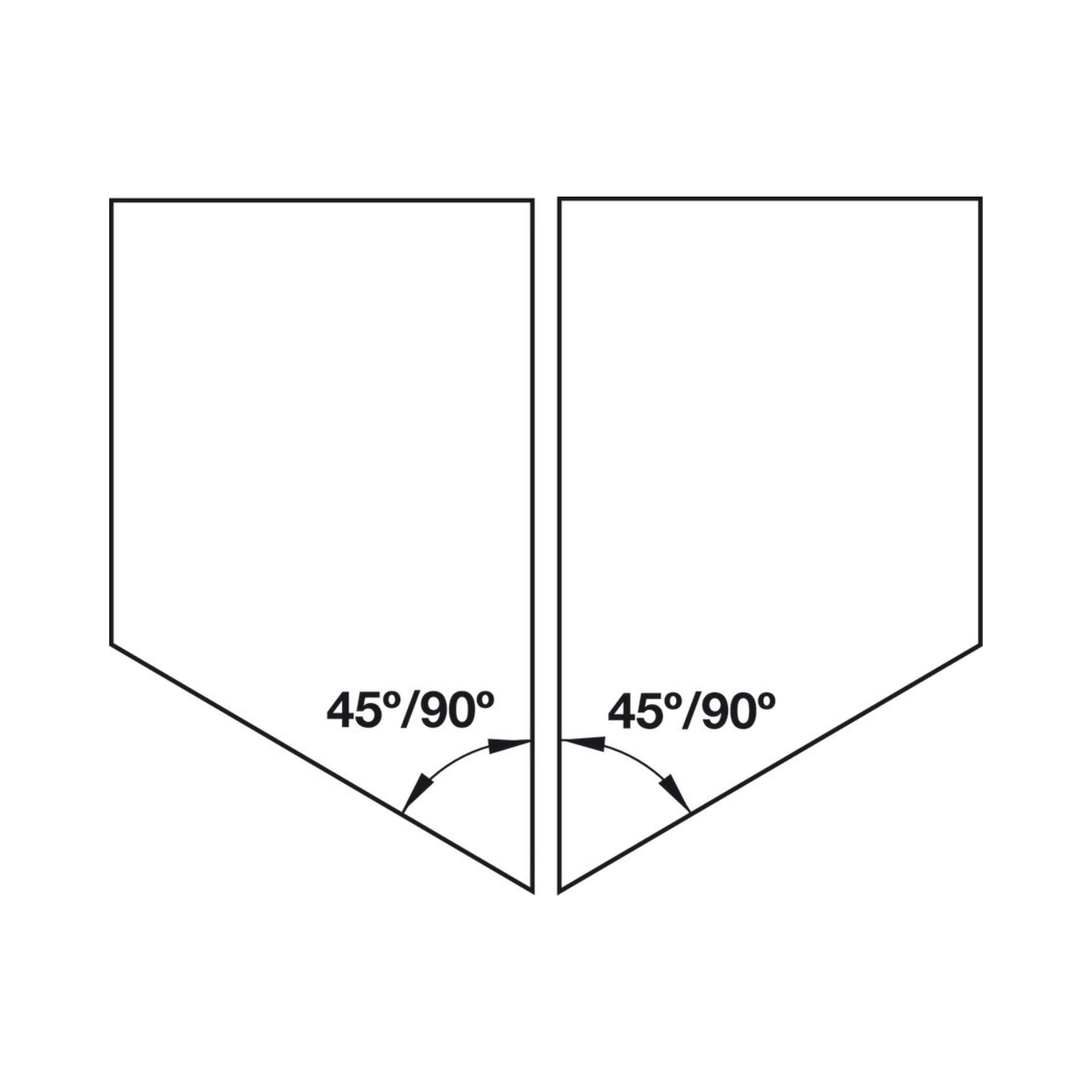

| Version | 2-tier with 2 curved separators, Angle: 90° |
| Width | 104.00 mm (≈ 4 1/8") |
| Installation depth | 505.00 mm (≈ 19 7/8") |
| Model | Classic |
| Type of pull out | Full extension |
| Load bearing capacity | 12.00 kg / 26.4 lbs |
| Material | Steel |
| Installation | For screw fixing to side panel |
| Soft closing mechanism | Yes |
| Features | With 2 curved separators, structured metal bases, and clip-on interval connection of track and front bracket to carrier frame |
Supplied with
Textured surface metal trays
Full extension slides
Description & Specifications
Häfele - Base Pull-Out, 2-Tier, 45°
Soft & Silent Feature slows the pull-out just before final closure, creating automatic and silent closing
Slides are concealed under the metal trays
Make the most of a narrow space
Shelves accommodate items with Ø90 mm (3 1/2")
| Specification | Value |
|---|---|
| For internal cabinet width | ≥112 mm / Min. 4 1/2" |
| For internal cabinet height | Min. 22 1/4" |
| For internal cabinet depth | Min. 19 1/2" (≈ 495 mm) |
| Color/finish | Not specified |
| Mounting | Right-mounted |
| Version | 2-tier with 2 curved separators, Angle: 90° |
| Width | 104.00 mm (≈ 4 1/8") |
| Installation depth | 505.00 mm (≈ 19 7/8") |
| Model | Classic |
| Type of pull out | Full extension |
| Load bearing capacity | 12.00 kg / 26.4 lbs |
| Material | Steel |
| Installation | For screw fixing to side panel |
| Soft closing mechanism | Yes |
| Features | With 2 curved separators, structured metal bases, and clip-on interval connection of track and front bracket to carrier frame |
Supplied with
Textured surface metal trays
Full extension slides
Häfele
by
Plaiwoo
Häfele - Base Pull-Out, 2-Tier, 45°
SKU:545.61.249
- Regular price
- $360.00
- Sale price
- $360.00
- Regular price
-
Shipping calculated at checkout.
