Description & Specifications

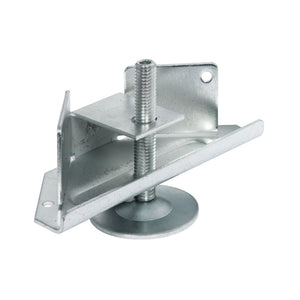

Häfele - Base Leveler, with Supporting Bracket
Achieve stable and precise leveling for cabinets and furniture with this heavy-duty Häfele base leveler. Designed with a supporting bracket and swiveling base plate, it delivers strength, easy adjustment, and compatibility with groove or screw-mounted installations.
- Ideal for cabinets, workstations, and heavy furniture
- Swiveling base plate enhances floor contact
- Strong steel construction with zinc-plated finish
- Top-access SW5 hex drive for smooth height adjustment
| Specification | Value |
|---|---|
| Load bearing capacity | 150 kg / 330 lbs |
| Installation Height | Min. 3" |
| Version | With swiveling base plate |
| Material | Steel |
| Color/finish | Zinc-plated |
| Adjustment facility | +30 mm (1 1/8") |
| Drive | Hexagon socket SW5 at top |
| Installation | Groove or screw mounted |
Supplied with
- Threaded bolt M10 x 65 mm (2 9/16”)
- Hexagon socket M5
- Swiveling base plate Ø50 mm (2”)
Description & Specifications
Häfele - Base Leveler, with Supporting Bracket
Achieve stable and precise leveling for cabinets and furniture with this heavy-duty Häfele base leveler. Designed with a supporting bracket and swiveling base plate, it delivers strength, easy adjustment, and compatibility with groove or screw-mounted installations.
- Ideal for cabinets, workstations, and heavy furniture
- Swiveling base plate enhances floor contact
- Strong steel construction with zinc-plated finish
- Top-access SW5 hex drive for smooth height adjustment
| Specification | Value |
|---|---|
| Load bearing capacity | 150 kg / 330 lbs |
| Installation Height | Min. 3" |
| Version | With swiveling base plate |
| Material | Steel |
| Color/finish | Zinc-plated |
| Adjustment facility | +30 mm (1 1/8") |
| Drive | Hexagon socket SW5 at top |
| Installation | Groove or screw mounted |
Supplied with
- Threaded bolt M10 x 65 mm (2 9/16”)
- Hexagon socket M5
- Swiveling base plate Ø50 mm (2”)
